Product details

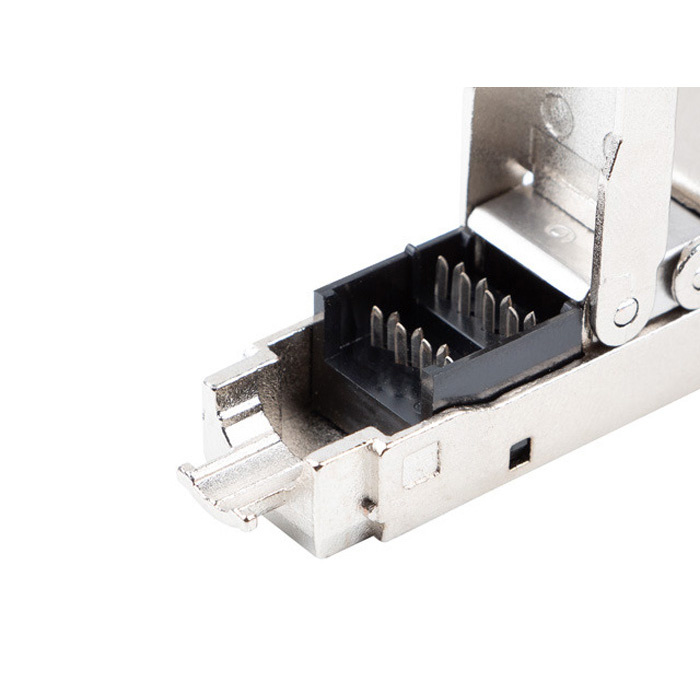

ADAPTER 2X RJ45 CAT6 FTP PLUG 8P8C TOOL-LESS

ADAPTER 2X RJ45 CAT6 FTP PLUG 8P8C TOOL-LESS

List price : € 4.81 VAT excl.

2X RJ45 CAT6 FTP PLUG 8P8C TOOL-LESS ADAPTER LANBERG

Add to my wishlist

Shop

This product has been added to your wishlist.

Reference : Z30120
Supplier reference :
Brand : LANBERG
Sold by : 1 pcs
Packaging : 1 pc

Lanberg tool-less connection box for connecting two lan cables.

The self-locking connector is designed for quick earning on wire and stranded twisted pair. The tool-less design allows quick assembly without the need for tools. The connection point is secured against the veins sliding out of the holders. Guide, color sticker, cable cover - all this makes making cable easy.

Features:
- tool-free assembly
- cable guide with a colored marking
- the connector is fully compatible with TIA / EIA-568A / B
- cat. 6 FTP

SPECIFICATION
Easily assemble without special tool.
Suitable for solid wire from AWG 26/1 to AWG 22/1.
Compliance with Class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09.
Adjustable strain relief, suitable for cable jacket diameter from 6.0 to 9.0mm.
Load bar for faster and easier wire pattern termination.
Reuseable design.
3µ gold plated phosphor bronze pin, durability: 750 cycles.
Operating temperature: -25 to 68, relateive humidity:
85%, air pressure: 70 to106KPa.
Intermediate resistance: 20M in normal atmosphere pressure (not include bulk resistor).
Insulated resistance: 1000M in normal atmosphere pressure.
Withstanding voltage: DC 1000V (AC 700V), no puncture or spark-over in 1 minute.
Retention strength: 7.7kg between jack and plug.


  • Connector 1 : RJ45 (F)
  • Connector 2 : RJ45 (F)
