FREE-STANDING 19"  22U/600x800 (Flat Pack) BLACK with GLASS front door

FREE-STANDING 19" 22U/600x800 (Flat Pack) BLACK with GLASS front door

List price : € 772.52 VAT excl.

RACK CABINET 19" FREE-STANDING 22U/600X800 BLACK LANBERG (FLAT PACK)

Add to my wishlist

Shop

This product has been added to your wishlist.

Reference : Z29223
Supplier reference :
Brand : LANBERG
Sold by : 1 pc
Packaging : 1 pc

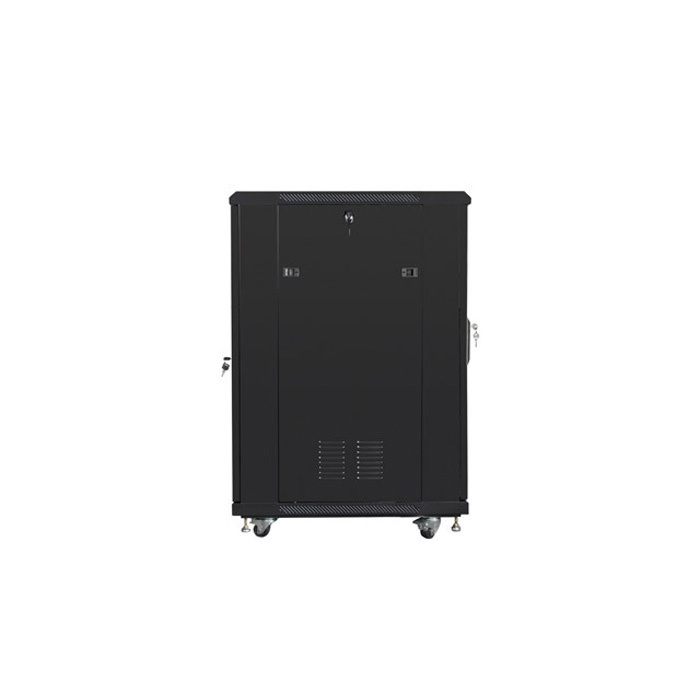

Free standing Lanberg cabinet FF01-6822-12B is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity. It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front tempered glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock. You can put the wiring through cable entrances on top and bottom (with blank entry panels).

The fan tray includes 4 fans 230V. Moreover, package includes additional accessories for rails installation, M6 cage nuts, blank entry panels, grounding kit (2x cables). Cabinet structure is for self-assembly and consists of three flat packs, which facilitates transport.

Product features:
- Manufacturer: Lanberg,
- Manufacturer's code: FF01-6822-12B,
- Cabinet type: Free-standing,
- Color: Black RAL9004,
- Height: 22U,
- Cabinet dimensions (W x D x H): 600x800x1159 mm,
- Height (top panel - bottom panel): 1080 mm,
- Height (top panel - ground): 1153 mm,
- Height (top panel - ground including screws): 1159 mm,
- Packaging dimensions (W x D x H): Top & Bottom - 65.5x84.5x12.5 cm, Doors - 65x103.5x9.5 cm, Frame - 61x108x24.5 cm,
- Floor panel: 4 castors with brakes + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between entry holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Protection rating: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Tempered glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Accessories included: Bag, locks for front and rear doors and two side panels, 20 cage nuts M6, grounding kit.




  • Colors : BLACK
  • Environment Properties : IP20
  • Size : 19 inch | 22U | 600 x 800
