FREE-STANDING 19"  22U/600X800 (FLAT PACK) WITH MESH DOOR BLACK

FREE-STANDING 19" 22U/600X800 (FLAT PACK) WITH MESH DOOR BLACK

List price : € 816.59 VAT excl.

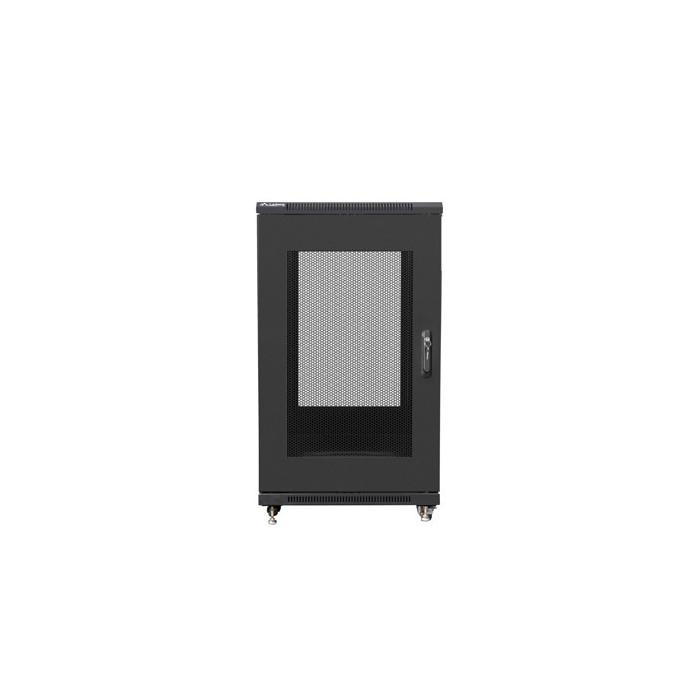

RACK CABINET 19" FREE-STANDING 22U/600X800 (FLAT PACK) WITH MESH DOOR BLACK LANBERG

Add to my wishlist

Shop

This product has been added to your wishlist.

Reference : Z33436
Supplier reference :
Brand : LANBERG
Sold by : 1 pcs
Packaging : 1 pc

Lanberg FF01-6822-23B single-section cabinet is specially designed for network construction, cable installation and storage of 19" equipment. It has a maximum total load capacity of up to 800 kg.

It is an ideal solution for data centers that require a large amount of rack space for equipment. It will easily fulfill its role in complex networks and server rooms, whether in small, medium or large companies or corporations. It will also be perfect for low-current installations, such as cable TV networks, alarm systems, fire alarm systems, access control and CCTV and IP monitoring systems.

The cabinet's structure is made of high-quality rolled steel, which guarantees excellent design and durability. The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a front perforated door with a lock, with the possibility of double-sided mounting. The side panels are removable (with locks included), and the rear door is made of perforated steel, which also has a lock. It is possible to insert cabling through the lockable top and bottom panels (with caps included).

A ventilation panel with four 230V fans is also included. In addition, included are accessories for fixing the support rails, M6 screws and plugs for the entrance panels, and a grounding set of two wires and nuts (front and rear doors). Thanks to the flat pack design, the entire cabinet is packed in three flat packs for easy transportation.


Features:
- Manufacturer: Lanberg,
- Manufacturer's code: FF01-6822-23B,
- Cabinet type: Free standing,
- Body color: Black RAL9004,
- Height: 22U,
- Cabinet dimensions (W x D x H): 600x800x1159 mm,
- Height (top panel - bottom panel): 1080 mm,
- Height (top panel - ground): 1153 mm,
- Height (top panel - ground including screws): 1159 mm,
- Packaging dimensions (W x D x H): Top & Bottom - 65.5x84.5x12.5 cm, Doors - 65x103.5x9.5 cm, Frame - 61x108x24.5 cm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Perforated, Rear - Perforated,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Included: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, grounding kit.


  • Colors : BLACK
  • Size : 22U
