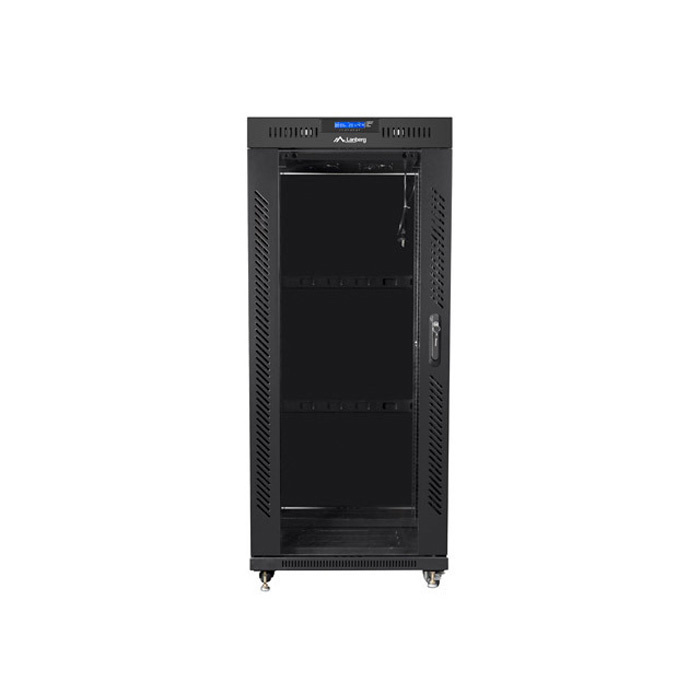

FREE-STANDING 19" 27U/600x800 (Flat Pack) BLACK with GLASS front door and LCD

The Lanberg FF01-6827-12BL V2 Single-Section Standing Rack Cabinet is the perfect solution for professional installers who build networks, perform cable installations, and install 19" equipment. This reliable rack cabinet offers an increased maximum total load capacity from 800 kg to 1200 kg, ensuring the solidity and safety of your installations.
Our rack cabinet is specifically designed for data centers that require ample space for equipment in cabinets. It works perfectly in extensive networks and server rooms, catering to small, medium, and large companies as well as corporations. Additionally, it is an excellent choice for low-voltage installations such as cable TV networks, alarm systems, fire systems, access control, CCTV, and IP surveillance systems.

The cabinet's construction is made of high-quality rolled steel, providing excellent design and craftsmanship. It features adjustable depth of vertical mounting rails, allowing for customization to accommodate various types of equipment. It comes equipped with grounding accessories, including a cable and nuts. The grounding pins are present in three parts of the cabinet - frame, front doors, and rear doors, ensuring comprehensive grounding of your installations.

The Lanberg cabinet also includes lockable top and bottom panels with blanking panels, enabling convenient cable entry and concealment. This ensures a neat and well-organized installation, minimizing cable clutter. Additionally, the cabinet features front doors with tempered glass and a lock, as well as rear steel doors. It offers the option for right or left-side door installation. The side panels are removable (with locks included), and the rear doors are made of sturdy steel with a lock. The cabinet is also equipped with a front-mounted LCD display with a thermostat function, providing essential information such as internal temperature, current time, and fan status.

The package includes a ventilation panel with four 230V fans, mounting accessories for the support rails, M6 screws, input panel blanks, grounding kit, casters, and feet. For ease of transportation, the cabinet is packed in three flat packages, allowing for self-assembly.
Choose the Lanberg rack cabinet to deliver reliable and professional installation solutions for your projects!



Product features FF01 V2:
- Manufacturer: Lanberg,
- Manufacturer's code: FF01-6827-12B,
- Cabinet type: Free-standing,
- Color: Black RAL9004,
- Height: 27U,
- Cabinet dimensions (W x D x H): 600x800x1461 mm,
- Height (top panel - bottom panel): 1352 mm,
- Height (top panel - ground): 1455 mm,
- Height (top panel - ground including screws): 1461 mm,
- LCD display – yes,
- Floor panel: 4 castors with brakes + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between entry holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: to 1200 KG,
- Protection rating: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Tempered glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Accessories included: Bag, locks for front and rear doors and two side panels, 20 cage nuts M6,4x wheels, 4x feet, grounding set (2x wire + washers).
