Product details

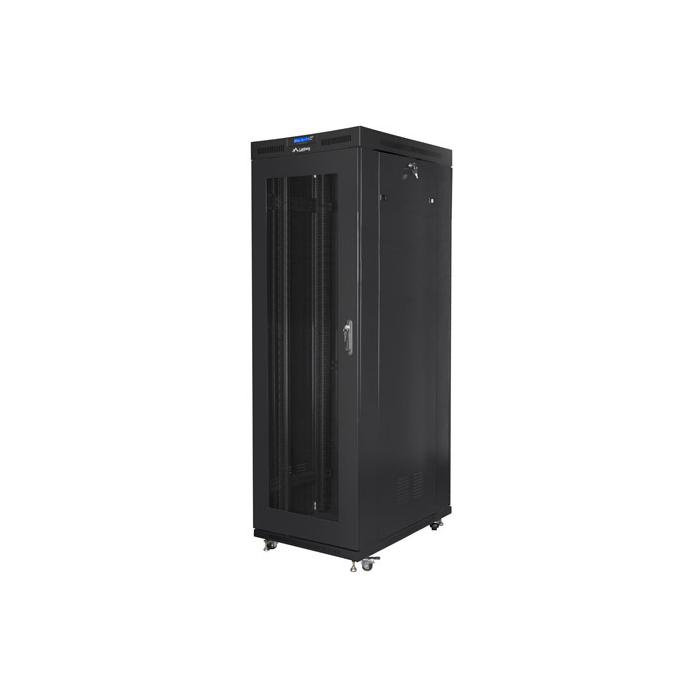

FREE-STANDING 19" 27U/800X1200 (FLAT PACK) WITH MESH DOOR LCD BLACK

FREE-STANDING 19" 27U/800X1200 (FLAT PACK) WITH MESH DOOR LCD BLACK

List price : € 1 322.72 VAT excl.

RACK CABINET 19" FREE-STANDING 27U/800X1200 (FLAT PACK) WITH MESH DOOR LCD BLACK LANBERG

Add to my wishlist

Shop

This product has been added to your wishlist.

Reference : Z32951
Supplier reference :
Brand : LANBERG
Sold by : 1 pcs
Packaging : 1 pc

Free standing Lanberg cabinet FF01-8227-23BL is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg loading capacity.
It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Product construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. Additionally, it is equipped with front perforated door with lock and possibility of installing those doors on right or left-hand side. It has removable side panels (include locks) and a rear solid perforated door with lock. Grounding pins are located in three elements of the cabinet, the bottom panel, the front door and the rear door.

The rack also has a front-mounted LCD display, which shows basic information (such as the temperature inside the rack, the current time and the current status of the fans) on the operating status of the unit and the thermostat function.
You can put the wiring through cable entrances on top and bottom (with blank entry panels). The fan tray includes 4 fans 230V and thermostat. Moreover, package includes additional accessories for rails installation, M6 cage nuts and blank entry panels. Cabinet structure is for self-assembly and consists of four flat packs, which facilitates transport.

Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-8227-23BL,
- Cabinet type: Freestanding,
- Body color: Black RAL9004,
- Height: 27U,
- Cabinet dimensions (W x D x H): 800x1200x1438 mm,
- Height (top panel - bottom panel): 1352 mm,
- Height (top panel - ground): 1425 mm,
- Height (top panel - ground including screws): 1431 mm,
- LCD display: Yes,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover and thermostat,
- Doors type: Front - Perforated, Rear - Perforated,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Mounting accessories, front and rear door lock, two side panel locks, 20 M6 screws, 2x vertical cable organizers, 4x casters, 4x feet.


  • Colors : BLACK
  • Size : 27U
