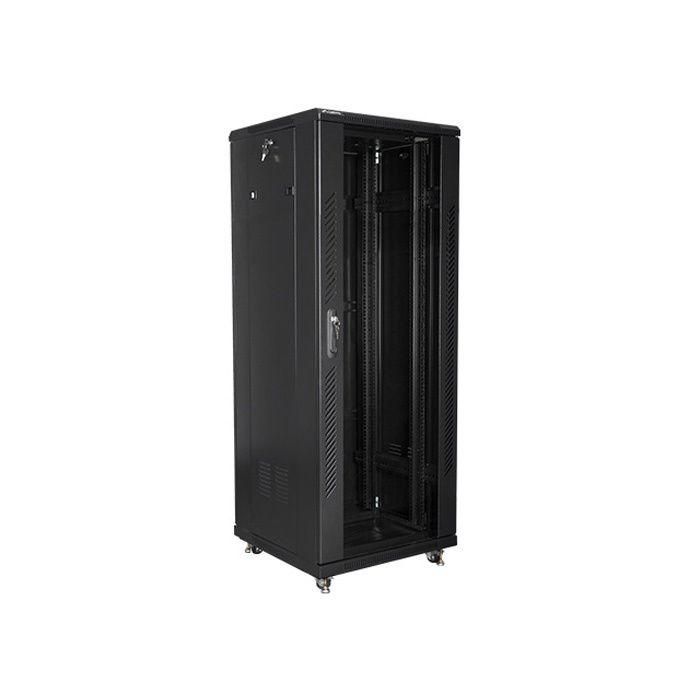

FREE-STANDING 19" 32U/600x600 (Flat Pack) BLACK with GLASS front door

Lanberg FF01-6632-12B 600x600 with a height of 32U single-section cabinet is specially designed for network construction, cable installation and storage of 19" equipment. It has a maximum total load capacity of up to 800 kg.



It is an ideal solution for data centers that require a large amount of rack space for equipment. It will easily fulfill its role in complex networks and server rooms, whether in small, medium or large companies or corporations. It will also be perfect for low-current installations, such as cable TV networks, alarm systems, fire alarm systems, access control and CCTV and IP monitoring systems.



The cabinet's structure is made of high-quality rolled steel, which guarantees excellent design and durability. The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a front tempered glass door with a lock, with the possibility of double-sided mounting. The side panels are removable (with locks included), and the rear door is made of full steel, which also has a lock. It is possible to insert cabling through the lockable top and bottom panels (with caps included).



A ventilation panel with two 230V fans is also included. In addition, included are accessories for fixing the support rails, M6 screws and plugs for the entrance panels, and a grounding set of two wires and nuts (front and rear doors). Thanks to the flat pack design, the entire cabinet is packed in three flat packs for easy transportation.



Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-6632-12B,
- Cabinet type: Free standing,
- Body color: Black RAL9004,
- Height: 32U,
- Cabinet dimensions (W x D x H): 600x600x1603 mm,
- Height (top panel - bottom panel): 1524 mm,
- Height (top panel - ground): 1597 mm,
- Height (top panel - ground including screws): 1603 mm,
- Packaging dimensions (W x D x H): Top & Bottom - 62.5x145x10 cm, Doors - 63.5x62x13 cm, Frame - 60.5x175x25 cm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 2 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Glass thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 2,00 mm; mounting profile - 2,00 mm; others - 1,50 mm - 1,20 mm,
- Cable entry panel: Top, Bottom (adjustable),
- Included: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, grounding kit.
