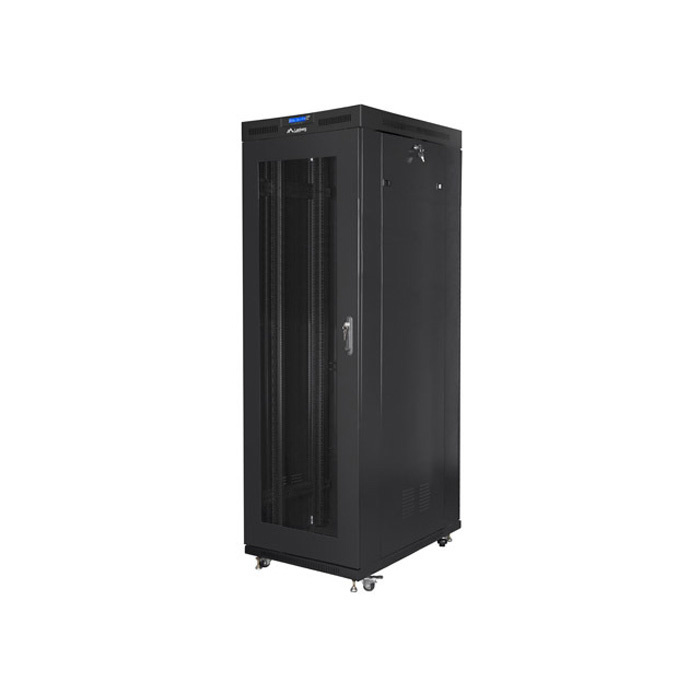

FREE-STANDING 19" 37U/800x1000 (Flat Pack) BLACK with MESH front door and LCD

Free standing Lanberg cabinet FF01-8037-23BL V2 is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity.

It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Product construction is made of high grade cold rolled steel which is characterized by an excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. Additionally, it is equipped with front perforated door with lock and possibility of installing those doors on right or left-hand side. Grounding pins are located in three elements of the cabinet, the bottom panel, the front door and the rear door.


Rack cabinet also include LCD display mounted on the front, displaying basic information (e.g. temperature inside the cabinet, current time and current status of the fans) regarding the device’s operation status.

You can put the wiring through cable entrances on top and bottom (with blank entry panels). The fan tray includes 4 fans 230V. Moreover, package includes additional accessories for rails installation, M6 cage nuts and blank entry panels. Cabinet structure is for self-assembly and consists of four flat packs, which facilitates transport.


Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-8037-23BL,
- Cabinet type: Freestanding,
- Body color: Black RAL9004,
- Height: 37U,
- Cabinet dimensions (W x D x H): 800x1000x1906 mm,
- Height (top panel - bottom panel): 1797 mm,
- Height (top panel - ground): 1900 mm,
- Height (top panel - ground including screws): 1906 mm,
- LCD display: Yes,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: to 1200 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Perforated, Rear - Perforated,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, 2 vertical cable management panels, grounding kit (2x cables + washers).
