Product details

FREE-STANDING 19"  42U/800x800 (Flat Pack) BLACK with GLASS front door and LCD

FREE-STANDING 19" 42U/800x800 (Flat Pack) BLACK with GLASS front door and LCD

List price : € 1 732.64 VAT excl.

RACK CABINET 19" FREE-STANDING 42U/800X800 (FLAT PACK) WITH GLASS DOOR LCD BLACK LANBERG

Add to my wishlist

Shop

This product has been added to your wishlist.

Reference : Z31679
Supplier reference :
Brand : LANBERG
Sold by : 1 pc
Packaging : 1 pc

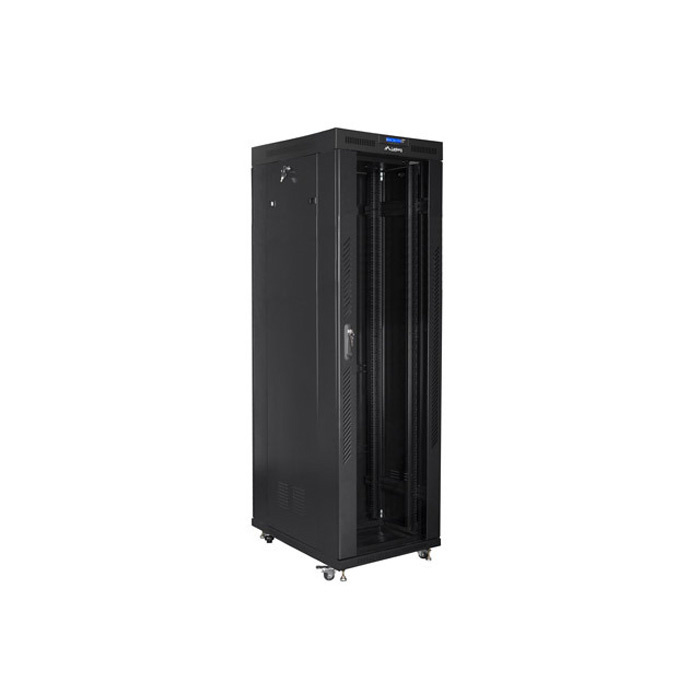

Free standing Lanberg cabinet FF01-8842-12BL is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity.

It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Product construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front tempered glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock. Grounding pins are located in three elements of the cabinet, the bottom panel, the front door and the rear door.


Rack cabinet also include LCD display mounted on the front, displaying basic information (e.g. temperature inside the cabinet, current time and current status of the fans) regarding the device’s operation status.

You can put the wiring through cable entrances on top and bottom (with blank entry panels). The fan tray includes 4 fans 230V. Moreover, package includes additional accessories for rails installation, M6 cage nuts and blank entry panels. Cabinet structure is for self-assembly and consists of four flat packs, which facilitates transport.
Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-8842-12BL,
- Cabinet type: Free-standing,
- Color: Black RAL9004,
- Height: 42U,
- Cabinet dimensions (W x D x H): 800x800x2097.5 mm,
- Height (top panel - bottom panel): 2018.5 mm,
- Height (top panel - ground): 2091.5 mm,
- Height (top panel - ground including screws): 2097.5 mm,
- LCD display: Yes,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, 2 vertical cable management panels.




  • Colors : BLACK
  • Environment Properties : IP20
  • Size : 19 inch | 42U | 800 x 800
