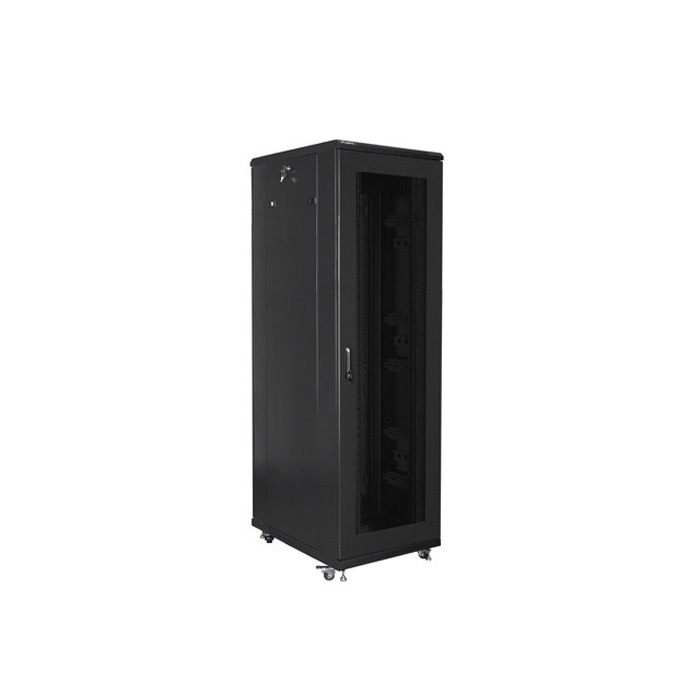

FREE-STANDING 19" 42U/800x800 (Flat Pack) BLACK with MESH front door

Lanberg FF01-8842-23B 800x800 single-section cabinet with a height of 42U is designed specifically for network construction, cable installation and storage of 19" equipment. It has a maximum total load capacity of up to 800 kg.



It is an ideal solution for data centers that require a large amount of rack space for equipment. It will easily fulfill its role in complex networks and server rooms, whether in small, medium or large companies or corporations. It will also be perfect for low-current installations such as cable TV networks, alarm systems, fire alarm systems, access control and CCTV and IP surveillance systems.



The cabinet's structure is made of high-quality rolled steel, which guarantees excellent design and durability. The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a front perforated door with a lock, with the possibility of double-sided mounting. The side panels are removable (with locks included), and the rear door is made of perforated steel, which also has a lock. It is possible to insert cabling through the lockable top and bottom panels (with caps included).



Also included is a ventilation panel with four 230V fans and two vertical cable organizers. In addition, included are accessories for fixing the support rails, M6 screws and input panel caps, and a grounding kit for two wires and nuts (front and rear doors). Thanks to the flat pack design, the entire cabinet is packed in four flat packs for easy transportation.

Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-8842-23B,
- Cabinet type: Free-standing,
- Color: Black RAL9004,
- Height: 42U,
- Cabinet dimensions (W x D x H): 800x800x2047.5 mm,
- Height (top panel - bottom panel): 1968.5 mm,
- Height (top panel - ground): 2041.5 mm,
- Height (top panel - ground including screws): 2047.5 mm,
- Packaging dimensions (W x D x H): Top & Bottom - 83x102x12 cm, Doors -83x190x9.5 cm, Frame - 80x196x25 cm, Vertical cable management - 18.5x190x11.5 cm,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 4 fans 230V in top cover,
- Doors type: Front - Perforation, Rear - Perforation,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Glass thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 2,00 mm; mounting profile - 2,00 mm; others - 1,50 mm - 1,20 mm,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, 2 vertical cable management panels, grounding kit.
