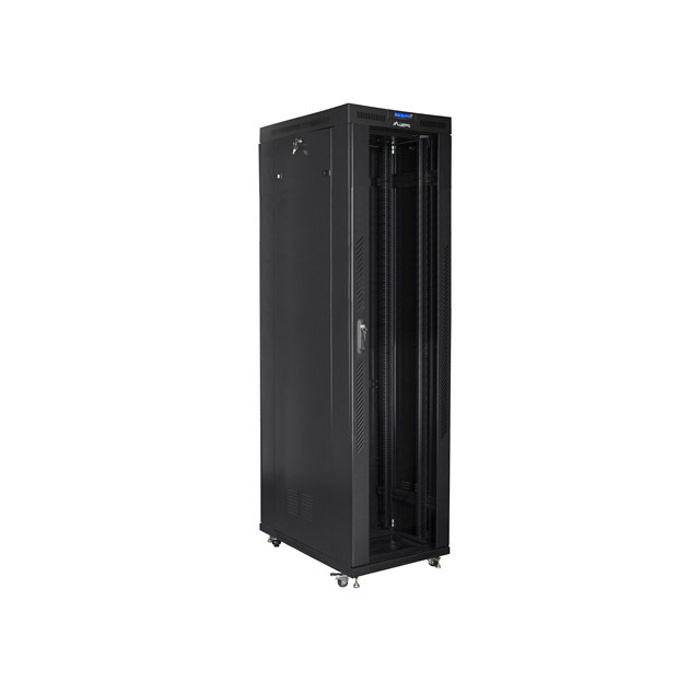

FREE-STANDING 19" 47U/800x1000 (Flat Pack) BLACK with GLASS front door and LCD

Free standing Lanberg cabinet FF01-8047-12BL is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 800kg. loading capacity.

It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment's. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Product construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship. The cabinet allows full adjustment of the depth of the vertical mounting rails. It is equipped with front tempered glass door with lock and possibility installing on right or left side. It has removable side panels (include locks) and rear solid steel door with lock.Grounding pins are located in three elements of the cabinet, the bottom panel, the front door and the rear door.

Rack cabinet also include LCD display mounted on the front, displaying basic information (e.g. temperature inside the cabinet, current time and current status of the fans) regarding the device’s operation status.

You can put the wiring through cable entrances on top and bottom (with blank entry panels). The fan tray includes 6 fans 230V. Moreover, package includes additional accessories for rails installation, M6 cage nuts and blank entry panels. Cabinet structure is for self-assembly and consists of four flat packs, which facilitates transport.


Features:
- Manufactuer: Lanberg,
- Manufactuer code: FF01-8047-12BL,
- Cabinet type: Freestanding,
- Body color: Black RAL9004,
- Height: 47U,
- Cabinet dimensions (W x D x H): 800x1000x2320 mm,
- Height (top panel - bottom panel): 2241 mm,
- Height (top panel - ground): 2314 mm,
- Height (top panel - ground including screws): 2320 mm,
- LCD display: Yes,
- Floor panel: 4 castors with brake + adjustable legs,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 465 mm,
- External width spacing between rack rails: 500 mm,
- Loading capacity: To 800 KG,
- Degree of protection: IP20,
- Top with fan tray: included 6 fans 230V in top cover,
- Doors type: Front - Temper glass, Rear - Steel,
- Standard: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Cable entry panel: Top, Bottom (adjustable),
- Packaging includes: Accessory bag, locks for front and rear doors and two side panels, 20 cage nuts M6, 2 vertical cable management panels.
