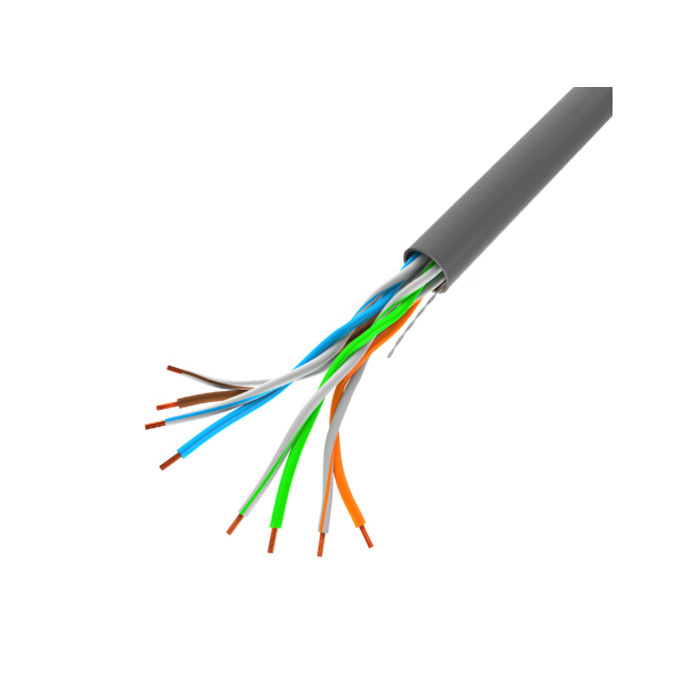

LAN Cable CAT.5E U/UTP 24AWG Solid PVC Ø5,0MM GREY FLUKE PASSED (CPR Eca)

- LAN cable category 5e UTP (Unshielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.50mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.0mm.
- HDPE conductor insulation: 0.88mm.
- Operation up to 100Mhz.
- Recommended connector / guide diameter for braided cables: 1.0 mm.
- Package: Color inner box with master carton.
- Packaging dimensions (W x D x H): 36.5x36.5x43.5 cm.
(Inner box dimension: 35x35x21 cm)

Electrical characteristics (20 degrees):

- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15.
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
