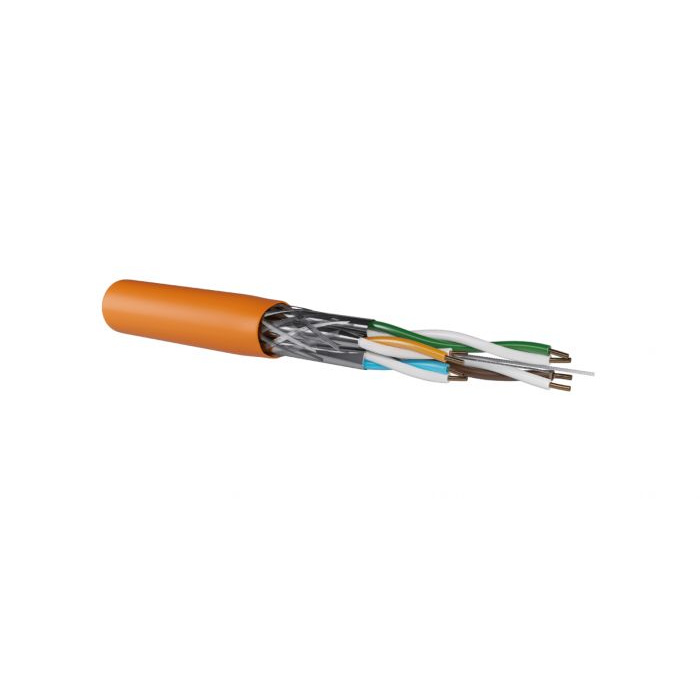

LAN Cable Cat.7 S/FTP AWG23 Solid Core 1000MHz, LSZH Ø7,8mm Orange (CPR Cca)
List price : € 1.25 VAT excl.
CABLE CAT7 S/FTP - LSZH | INDOOR | Cca - AWG23 - 0.26mm² - ORANGE
Add to my wishlist
Shop
This product has been added to your wishlist.
| Reference : | CAT7SF OR CCA |
|---|---|
| Supplier reference : | 82224421030C1 |
| Brand : | BARPA |
| Sold by : | 305 meter |
| Packaging : | 305 m/spool |
ENTERPRISE/DATA CENTER COPPER CABLE CAT7 S/FTP - LSZH -23 AWG - 0,56mm
This LAN cable has individual screen for each pair and then overall braid screen to improve the quality of the transmission. This cable was designed to Support all Class F protocols including 10GBASE-T, with a performance up to 600MHz. It’s suited to horizontal and backbone area.
DESCRIPTION
- Performance specified up to 600MHz and tested up to 1000MHz;
- Individual foil pairs with external S foil;
- Decreasing length cable markings - Easy identification of remaining cable reduces installation time and cable scrap;
- Designed to Support all Class F protocols including 10GBASE-T;
- Supports Power Over Ethernet (PoE), Power Over Ethernet Plus (PoE+), High Power Ethernet (PoE++) and 4 Pair Power Over Ethernet (4PPoE) Applications.
DIAMETER
- Insulation diameter : 1,33mm
- External overall diameter : 7,8mm
APPLICABLE STANDARDS
Electrical Performance:• ISO/IEC 11801; • ISO/IEC 61156-5; • EN 50173; • EN 50288-9-1; ANSI/ TIA-568-D.2;Reaction to fire:• IEC 60332-3-22; • IEC 60754; • IEC 61034; • EN 50267-2-3; • EN 13501-6;
• EN ISO 1716:2010; • EN 50575;PoE:• IEEE 802.3bt PoE Type 1, 2, 3 and 4.
- Product Section : Cable & Wire > Bulk > Network
- Brand : BARPA
- Category : CAT7
- Shielding : S/FTP
- Material : CU (Copper)
- Construction : Solid-core
- Colors : ORANGE
- Environment Properties : Cca | INDOOR | LSZH
- Section : AWG23
- Network speed / Bandwith : 10 Gb/s | 1000 MHz
