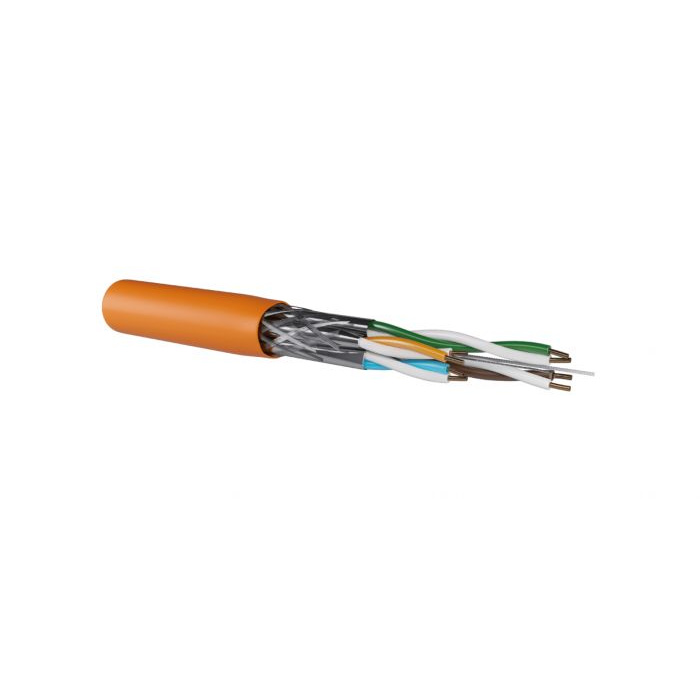

LAN Cable Cat.7A S/FTP 23AWG Solid Core 1200MHz, LSZH Ø7,8mm Orange (CPR Cca)
List price : € 1.35 VAT excl.
CABLE CAT.7A S/FTP – LSZH – 23AWG
Add to my wishlist
Shop
This product has been added to your wishlist.
| Reference : | CAT7ASF OR CCA |
|---|---|
| Supplier reference : | 82225421030C1 |
| Brand : | BARPA |
| Sold by : | 305 meter |
| Packaging : | 305 m/spool |
ENTERPRISE/DATA CENTER COPPER CABLE CAT7A S/FTP - LSZH -23 AWG - 0,56mm
This LAN cable has an individual screen for each pair and then an overall braid screen to improve the quality of the transmission. This cable was designed to Support all Class FA protocols including 10GBASE-T, with performance up to 1000MHz. It’s suited for horizontal and backbone area.
DESCRIPTION
- Performance specified up to 1000MHz and tested up to 1200MHz;
- Individual foil pairs with external S foil;
- Decreasing length cable markings - Easy identification of remaining cable reduces installation time and cable scrap;
- Designed to Support all Class FA protocols including 10GBASE-T;
- Supports Power Over Ethernet (PoE), Power Over Ethernet Plus (PoE+), High Power Ethernet (PoE++) and 4 Pair Power Over Ethernet (4PPoE) Applications.
DIAMETER
- Insulation diameter : 1,33mm
- External overall diameter : 7,8mm
APPLICABLE STANDARDS
Electrical Performance:• ISO/IEC 11801; • ISO/IEC 61156-5; • EN 50173; • EN 50288-9-1; ANSI/ TIA-568-C.2;Reaction to fire:• IEC 60332-3-24; • IEC 60754; • IEC 61034; • EN 50267-2-3; • EN 13501-6;
• EN ISO 1716:2010; • EN 50575;PoE:• IEEE 802.3bt PoE Type 1, 2, 3 and 4.
- Product Section : Cable & Wire > Bulk > Network
- Brand : BARPA
- Category : CAT7A
- Shielding : S/FTP
- Material : CU (Copper)
- Construction : Solid-core
- Colors : ORANGE
- Environment Properties : Cca | INDOOR | LSZH
- Section : AWG23
- Network speed / Bandwith : 10 Gb/s | 1200 MHz
