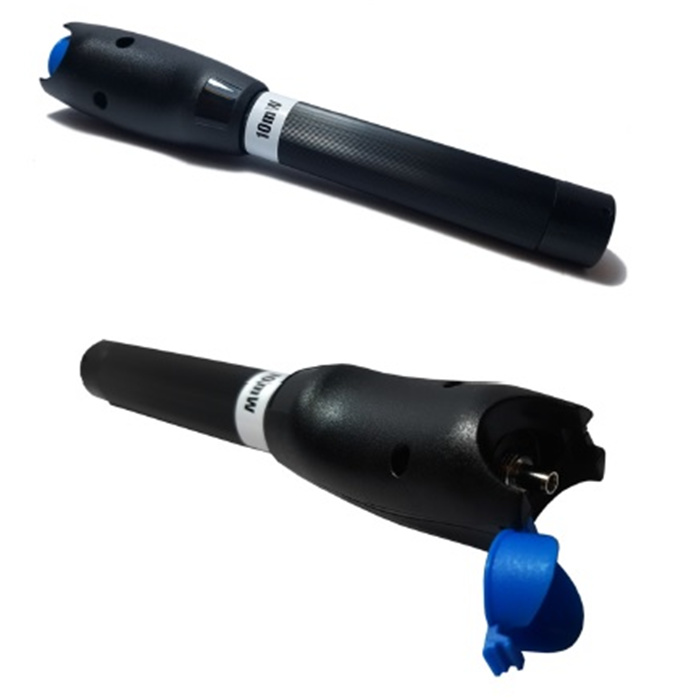

Pen-Style Visual Fault Locator fiber checker 650nm 1mW, 2,5 mm ferrule
List price : € 52.14 VAT excl.
Add to my wishlist
Shop
This product has been added to your wishlist.
| Reference : | VFL2.5-1MW-PLA |
|---|---|
| Supplier reference : | |
| Brand : | b-LINE |
| Sold by : | 1 pc |
| Packaging : | 1 pc |
Pen-Type Visual Fault Identifier
Pen-type VFL is specially designed for field personnel who need an efficient and economical tool for fibre tracing, fibre routing and continuity checking in optical networks. It finds breakpoints, poor connections, bending or cracking in fibre optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fibre identification.
Features :
- 2.5mm universal connector (1.25mm connector optional)
- Operates either in CW or Pulsed mode with constant output power
- Low battery warning
- Long battery life (up to 60 hours)
- Drop-resistant and dust-proof design of laser head
- Laser case ground design prevents ESD damage
- Portable and rugged
- Easy to use
Specifications :
- Central Wavelength : 650 ± 20 nm
- Output Power : 1 mW
- Dynamic Distance : 3-5 Km
- Connector : 2.5mm (1.25mm with the VFL Adapter - ref. VFL-1.25CON)
- Power Supply : 2 x AA Battery
- Operating Temperature : -10 ~ +50 <90%RH
- Storage Temperature : -20 ~ +60 <90%RH
- Weight : 80 Gr
- Product Section : Fiber Optics > Measurement & Cleaning > Measurement & Inspection
- Brand : b-LINE
