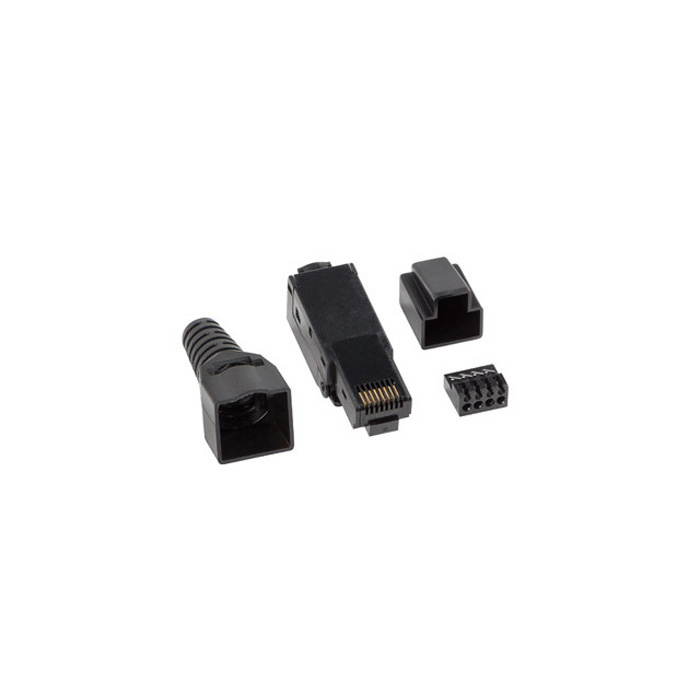

Robust RJ45 CAT6 UTP Plug Tool-Less, AWG26->22, Ø6->9mm

Lanberg RJ45 tool-less network plug.

The self-locking connector is designed for quick earning on wire and stranded twisted pair. The tool-less design allows quick assembly without the need for tools. The connection point is secured against the veins sliding out of the holders. Guide, color sticker, cable cover - all this makes making RJ45 cable easy.

Features:
- tool-free assembly
- cable guide with a colored marking
- the connector is fully compatible with TIA / EIA-568A / B
- cat. 6 UTP

SPECIFICATION
Easily assemble without special tool.
Suitable for solid wire from AWG 26/1 to AWG 22/1.
Compliance with Class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09.
Adjustable strain relief, suitable for cable jacket diameter from 6.0 to 9.0mm.
Load bar for faster and easier wire pattern termination.
Reuseable design.
3µ gold plated phosphor bronze pin, durability: 750 cycles.
Operating temperature: -25 to 68, relateive humidity:
85%, air pressure: 70 to106KPa.
Intermediate resistance: 20M in normal atmosphere pressure (not include bulk resistor).
Insulated resistance: 1000M in normal atmosphere pressure.
Withstanding voltage: DC 1000V (AC 700V), no puncture or spark-over in 1 minute.
Retention strength: 7.7kg between jack and plug.

• Product Section : Connectors & Adapters > Connectors > RJ45
• Brand : LANBERG
• Category : CAT6
• Shielding : UNSHIELDED

• Connector 1 : RJ45 (M)
