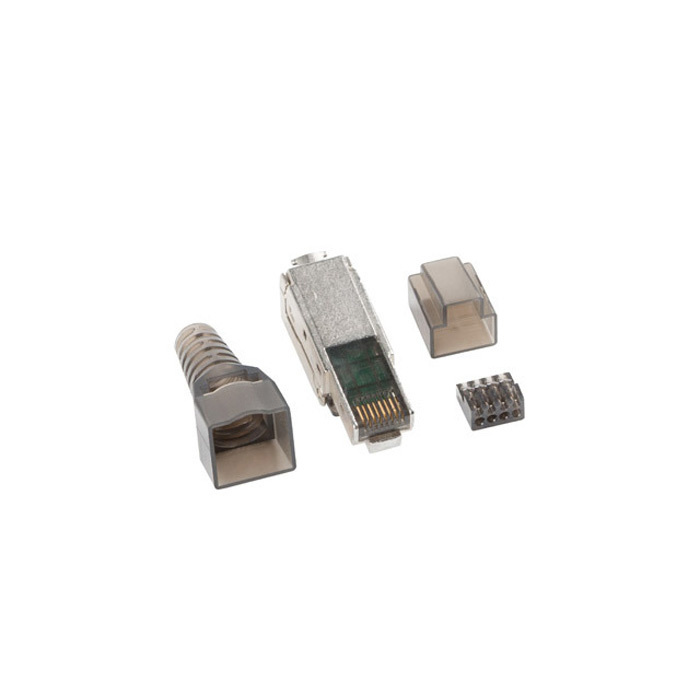

Robust RJ45 CAT6A FTP Plug Tool-Less, AWG26->22, Ø6->9mm

Robust RJ45 CAT6A FTP Plug Tool-Less, AWG26->22, Ø6->9mm

List price : € 4.71 VAT excl.

Add to my wishlist

Shop

This product has been added to your wishlist.

Reference : Z29757
Supplier reference :
Brand : LANBERG
Sold by : 1 pc
Packaging : 50 pcs/box

Lanberg RJ45 tool-less network plug.

The self-locking connector is designed for quick earning on wire and stranded twisted pair. The tool-less design allows quick assembly without the need for tools. The connection point is secured against the veins sliding out of the holders. Guide, color sticker, cable cover - all this makes making RJ45 cable easy.

Features:
- tool-free assembly
- cable guide with a colored marking
- the connector is fully compatible with TIA / EIA-568A / B
- cat. 6A FTP

SPECIFICATION
Easily assemble without special tool.
Suitable for solid wire from AWG 26/1 to AWG 22/1.
Compliance with Class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09 10 GB IT suitable according to IEEE 802.3an
Adjustable strain relief, suitable for cable jacket diameter from 6.0 to 9.0mm.
Load bar for faster and easier wire pattern termination.
Reuseable design.
3µ gold plated phosphor bronze pin, durability: 750 cycles.
Operating temperature: -25 to 68, relateive humidity:
85%, air pressure: 70 to106KPa.
Intermediate resistance: 20M in normal atmosphere pressure (not include bulk resistor).
Insulated resistance: 1000M in normal atmosphere pressure.
Withstanding voltage: DC 1000V (AC 700V), no puncture or spark-over in 1 minute.
Retention strength: 7.7kg between jack and plug.




  • Connector 1 : RJ45 (M)
