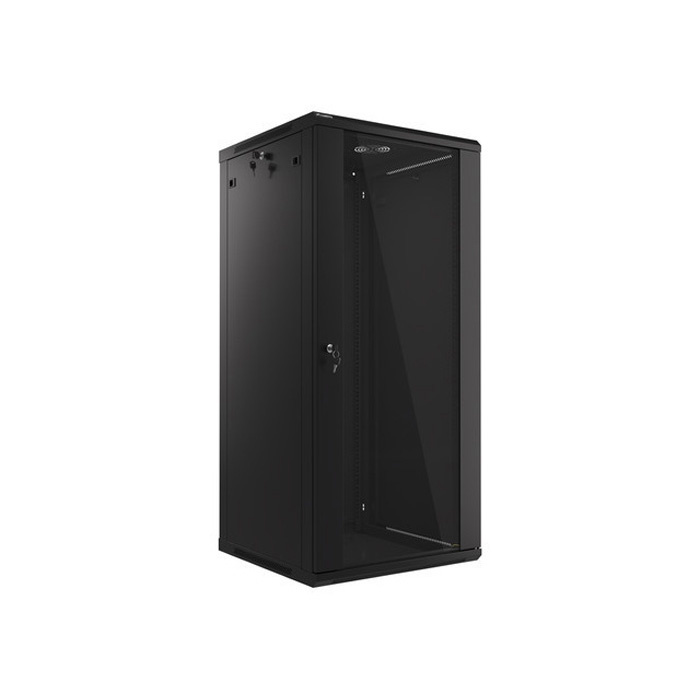

WALL-MOUNT 19” 27U/600x600 (Flat Pack) BLACK with GLASS front door

Wall mount, single section Lanberg cabinet WF01-6627-10B is a solution designed to expand networks, installation of cabling and equipment in size 19” with max. 60kg. loading capacity. It can be used in networks, server rooms, small and medium businesses. It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels (locks included). The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport. In addition, parcel includes additional accessories for rail mounts, M6 cage nuts and blank entry panels.

Features:
- Manufactuer: Lanberg,
- Manufactuer code: WF01-6627-10B,
- Cabinet type: Wall mount,
- Body color: Black RAL9004,
- Height: 27U,
- Cabinet dimensions (W x D x H): 600x600x1307 mm,
- Height (top panel - bottom panel): 1300 mm,
- Height (top panel - ground including screws): 1307 mm,
- Packaging dimensions (W x D x H): 62x130x18 cm,
- Internal width spacing between rack rails: 450 mm,
- Width of the spacing between holes of rack rails: 475 mm,
- External width spacing between rack rails: 500 mm,
- Maximum mounting depth: 529.5 mm,
- Loading capacity: max. 60 KG,
- Degree of protection: IP20,
- Doors type: Temper glass,
- Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Fan mounting slots: Yes, 120mm, 110V or 230V,
- Glass thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 1,50 mm; mounting profile - 1,50 mm; others - 1,20 mm; top & bottom & side panel - 1,00 mm,
- Cable entry panel: Top, Bottom,
- Included: Accessory bag, earth kit, front door lock, two side panels with locks, 10 cage nuts M6.
