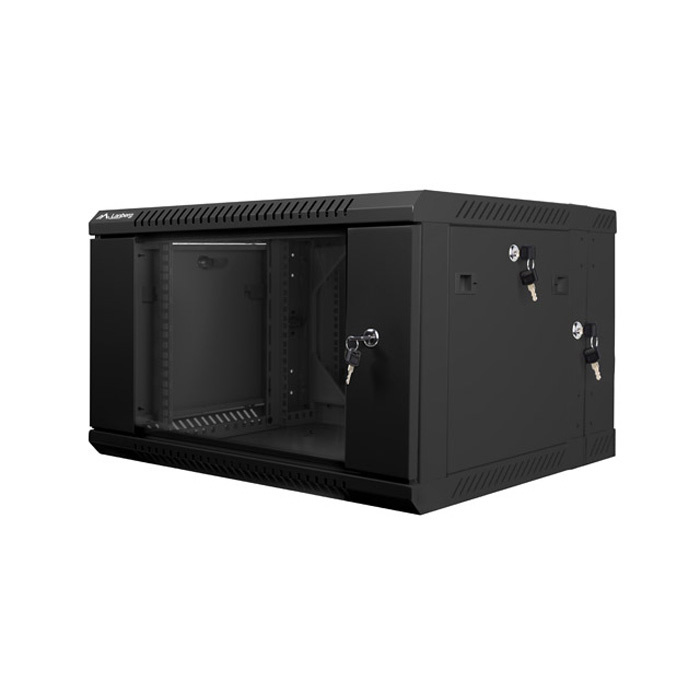

WALL-MOUNT 19” DOUBLE-SECTION 6U/600x600 (Flat Pack) BLACK with GLASS front door

Lanberg’s wall mount, double section cabinet WF02-6606-10B is a solution designed to expand networks, installation of cabling and flexible equipment montage with a size of 19" and max. 60kgs loading capacity. It can be used in networks, server rooms, small, medium businesses. On top of that, this particular cabinet can also work in low voltage systems such as cable TV networks, alarm systems, fire protection and access control systems, CCTV and IP surveillance.

Product construction is made of high grade cold rolled steel which is characterized by an excellent design and high quality of craftsmanship.
Thanks to the use of an additional section, which has also been equipped with vertical 19" RACK rails, you can easily route hardware to the rear of the cabinet, perform servicing of the equipment contained therein, or expand by mounting new network devices (such as a 19" PDU strip).

The cabinet has a tempered glass front door with a lock, with the option of right or left side mounting, removable side panels (with locks included). The equipment also allows double-sided mounting of the rear section, which is supplied with a lock, in addition, there is also the possibility of cable entry through the removable top and bottom panels.

Cabinet is designed for self-assembly, packaged in a form of convenient flat pack. Lastly packaging includes additional accessories for rails mounts, M6 cage nuts and blank entry panels.

Features:
- Manufacturer: Lanberg,
- Manufacturer code: WF02-6606-10B,
- Cabinet type: Wall mount,
- Body color: Black RAL9004,
- Height: 6U,
- Cabinet dimensions (W x D x H): 600x600x374.3 mm,
- Height (top panel - bottom panel): 367 mm,
- Height (top panel - ground including screws): 374.3 mm,
- Packaging dimensions (W x D x H): 51.5x61x33 cm,
- Spacing between rack rails: 450 mm,
- Spacing between holes in rack rails: 475 mm,
- Internal spacing between rack rails: 500 mm,
- Loading capacity: max. 60 KG,
- Degree of protection: IP20,
- Doors type: Tempered glass,
- Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI,
- Material: High grade cold rolled steel, powder coated,
- Available fan: Yes, 120mm, 110V or 220V,
- Glass thickness: 5.0 mm,
- Sheet thickness: vertical mounting rails - 1,50 mm; mounting profile - 1,50 mm; others - 1,20 mm; top & bottom & side panel - 1,00 mm,
- Cable entry panel: Top, Bottom,
- Packaging includes: Accessory bag, earth kit, front and rear door lock, two side panels with locks, 10 cage nuts M6.

Additional accessories:
- AK-1001-B – Lanberg's fixed shelf for wall mount cabinets
- AK-1004-B – Lanberg's front and rear fixed shelf for wall-mount and free-standing cabinets
- AK-1008-B – Lanberg's support board for wall-mount and free-standing cabinets
- AK-1101-B – Lanberg's brush panel 1U
- AK-1102-B – Lanberg's brush panel for cable entry panel
- AK-1201-B – Lanberg's cable management type A
- AK-1202-B – Lanberg's cable management type B
- AK-1302-S – Lanberg's 50 cage nuts M6
- AK-1401-B – Lanberg's blank panel 1U
- AK-1402-B – Lanberg's blank panel 2U
- AK-1501-B – Lanberg's 230V fan for wall-mount cabinets
